This style of cabinet washer is designed to efficiently clean racks, trolleys, and checkweighers at agri-food facilities. 3 to 5 automated washing cycles (pre-wash, wash or acid wash & caustic wash, rinse, and sanitizer) can be configured and adjusted as needed. Various types of spray headers available, designed according to your wash needs.
Allows for efficient cleaning on a wide variety of surfaces
Possibility to wash multiple components of different sizes
Programmable automated wash cycles according to your needs
Easy programming of washing parameters
Various types of spray headers available
Recycling of water and detergents through conductivity analysis in a closed cycle
Automatic fill and heat cycles
Self-cleaning option available
Washable area (width x height x depth) customized to accommodate the items to be washed
3 wash cycles configurations (dosing pump[s] included):
3 cycle (Pre-Wash/Wash/Sanitize)
4 cycle (Pre-Wash/Wash/Rinse/Sanitize) (Default)
5 cycle (Pre-Wash/Acid Wash/Caustic Wash/Rinse/Sanitize)
4 spray header options:

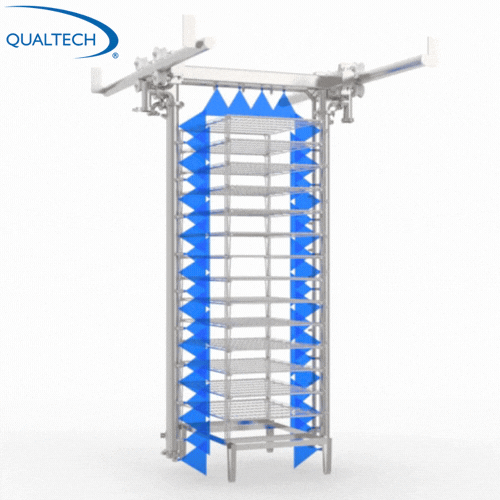

Horizontally Motorized (Default)

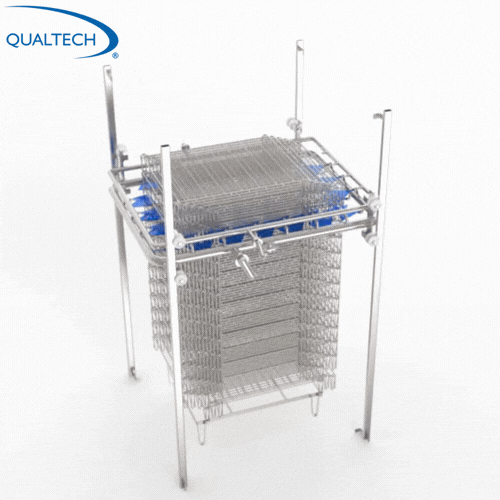

Vertically Motorized
Spin Header - Pressure Driven
Spin Header - Motorized
Several door options:
Manual door (Default)
2 manual doors
Sliding door
2 sliding doors
Guillotine door
Curtain door
4 heating options:
By Customer
Tubular Heat Exchanger - Water (Default)
Tubular Heat Exchanger - Steam
Electrical Element
Electrical supply:
460V 3PH
575 3PH (Default)
Sanitary construction in 304 (Default) or 316 stainless steel
The sump is typically installed in a pit with the door at floor level so racks can be rolled in and out with ease. Alternatively, instead of a pit, the sump can be installed next to the cabinet with a ramp or lifting mechanism installed so racks can be loaded and unloaded.
Designed & manufactured in Canada
