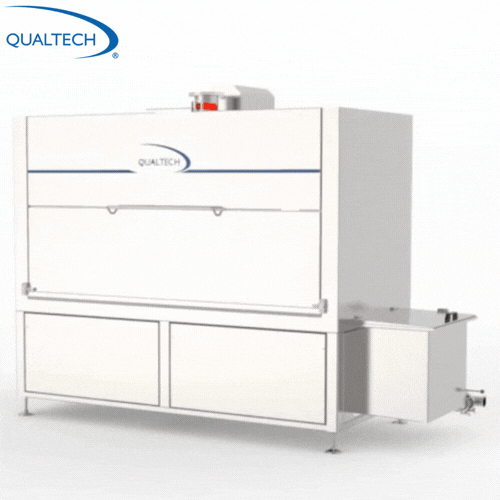

Qualtech Front-Load Cabinet Washer

This compact front-load wash cabinet has been developed to meet the washing needs of small and medium-sized agri-food companies.

Available in 2 different sizes, this highly flexible equipment can wash a wide range of components and tools, including molds, pans, trays, baskets, cages, and more.

Benefits

• HMI interface allows easy selection of recipes and setting of parameters

• Filtration of wash water extends the life of both hot water and detergent resulting in substantial savings

• Sliding wire basket or rack for easy front loading

• Removable wash rack system

• Recycling and filtering of wash and rinse waters that are managed with conductivity analysis

• Water level and temperature control

• Spray headers cover the entire wash area

• Ability to wash various components

• Safety lock system on door and lid to protect the operator

• Self-cleaning option available

Cabinet Sizes

• 3’ Cabinet

  • Washable Area (LxWxH): 36” x 27” x 27”

• 6’ Cabinet

  • Washable Area (LxWxH): 72” x 27” x 27”

Options

• 3 wash cycles configurations (dosing pump[s] included):

  • 2 cycle (Wash/Rinse)

  • 3 cycle (Pre-Wash/Wash/Rinse) (Default)

  • 4 cycle (Pre-Wash/Wash/Rinse/Sanitize)

• 3 heating options:

  • Tubular Heat Exchanger - Water (Default)

  • Tubular Heat Exchanger - Steam

  • Electrical Element

• Electrical supply:

  • 240V 3PH

  • 460V 3PH

  • 575 3PH

• Sanitary construction in 304 (Default) or 316 stainless steel

Designed & manufactured in Canada

View flyer
